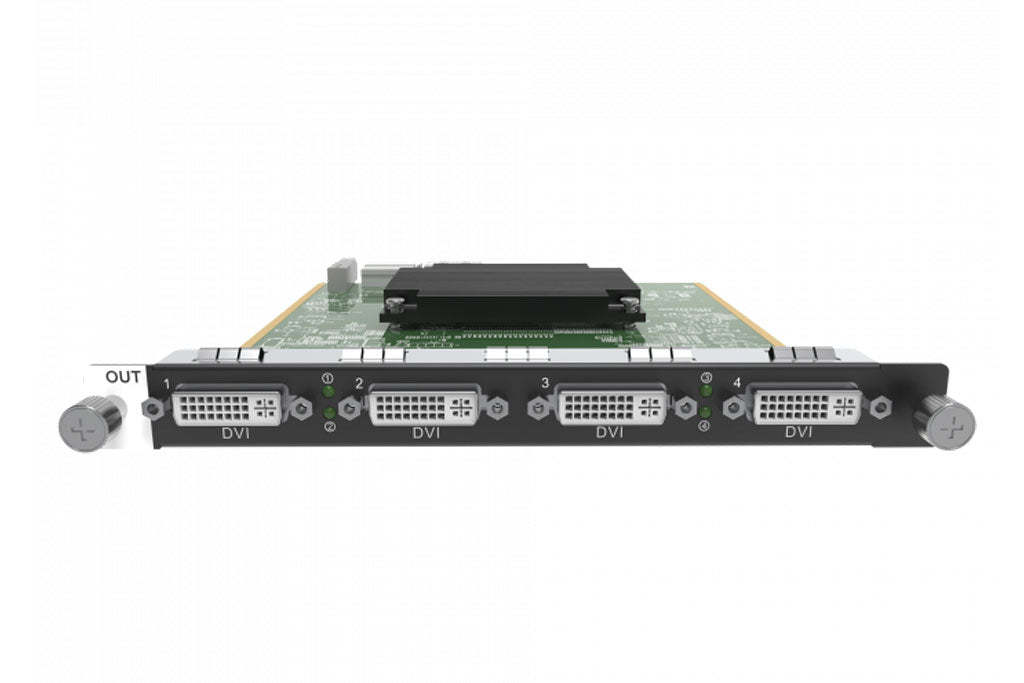

NovaStar H Series 4x DVI Output Card

Novastar H Series 2x RJ45 + 1x HDMI 1.3 Preview Card

Novastar’s H Series 4x DVI Output Card adds four SL-DVI outputs to the H2/H5/H9/H15 Video Wall Splicers. As a single link output, all four connectors are available for output and can support the maximum resolution of 2048 x 1552 at 60 Hz. As a dual link output, connectors 1 & 3 copy the output to connectors 2 & 4, which are available for output, with each connector supporting the maximum resolution of 4096 x 2160 at 30 Hz or 3840 x 1080 at 60 Hz.

Single Link DVI (Out):4
Dual Link DVI (Out):2
Output Slots:1
Maximum Output Resolution:2048 x 1152 , 3840 x 1080 , 4096 x 2160
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
