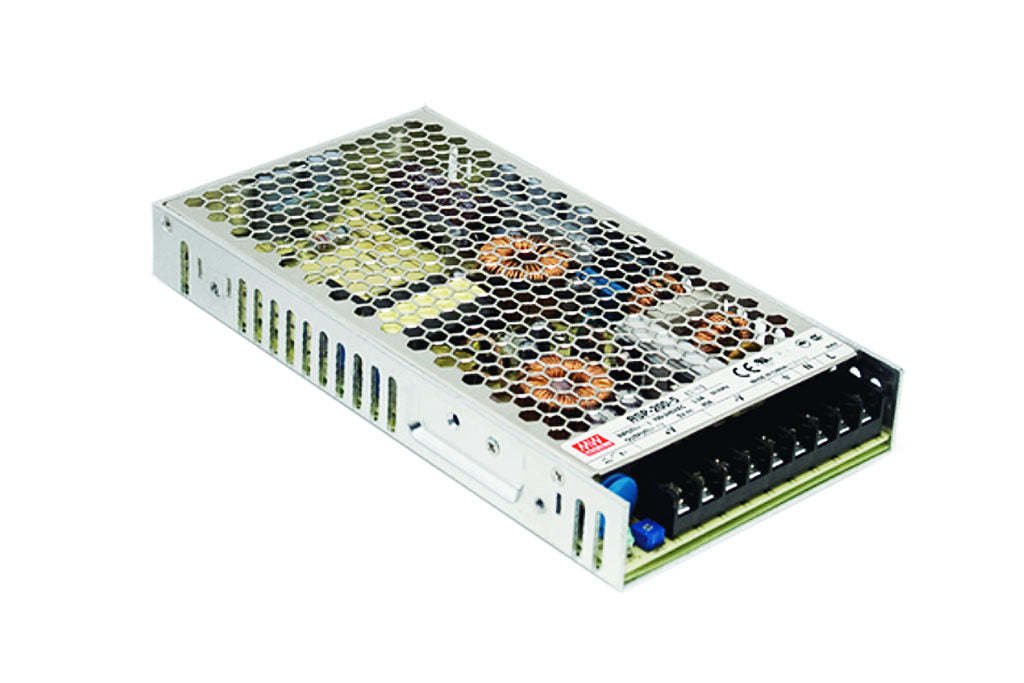

Meanwell RSP-200 Series RSP-200-5 LED Displays Power Supply
RSP series covers wide usage with height 30mm. Universal voltage input range, PFC function. Output voltage: 4.2V/5V.The RSP-200 adopts the new circuit design topology to achieve the goal of high conversion efficiency so that the performance of the whole system is enhanced, so the energy is able to be saved and the electric expense can thus be reduced. Suitable applications include indoor and outdoor LED electronic signage, LED moving signs, and LED TV walls.
Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC Fan with fan speed control function
- 1U low profile 30mm
- Optional conformal coating models (RSP-200- CC)
- LED indicator for power on
- 2 years warranty
Meanwell RSP-200 Series LED Displays Power Supply Mechanical Specification
Meanwell RSP-200 Series LED Displays Power Supply Block Diagram
Meanwell RSP-200 Series LED Displays Power Supply Installation
Meanwell RSP-200 Series LED Displays Power Supply Specification
