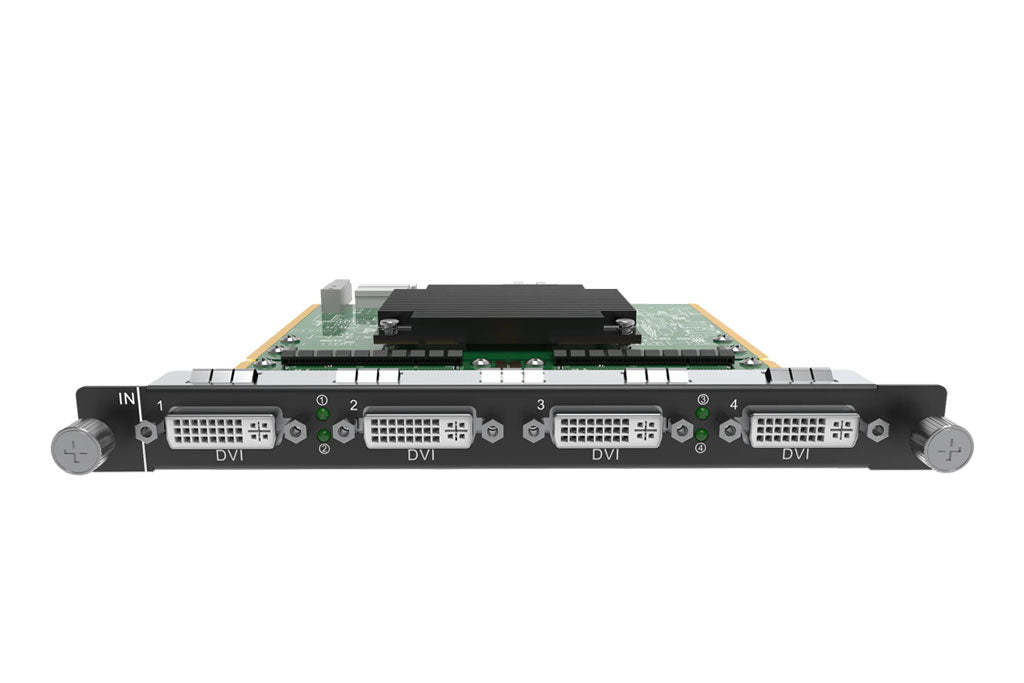

NovaStar H Series 4x DVI Input Card

Novastar H Series 4x HDBaseT output card

The H Series 4x DVI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. In Single link mode it supports four DVI input signals with resolutions of up to 2048x1152 at 60 Hz. In Dual link mode connectors 2 and 4 are used for inputs, with each input supporting resolutions of up to 3840x1080 at 60 Hz. Four status LEDs indicate whether the input signal is valid.

• Supports Single and Dual link mode   √
• Supports 10-bit input source   √
• HDCP 1.4 compliant   √
• Four status LEDs   √


Single Link DVI:4
Dual Link DVI:2
Input Slots:1
Maximum Input Resolution:2048 x 1152, 3840 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
