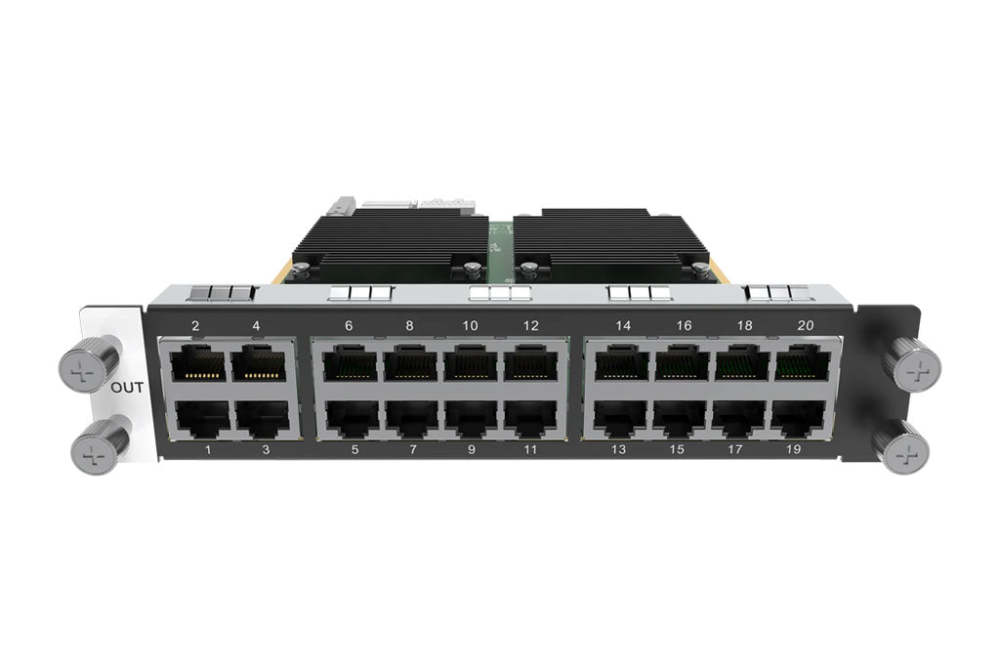

NovaStar H Series 20x RJ45 4K Sending Card

Novastar H Series 20x RJ45 4K Sending Card

The H Series 20x RJ45 Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has 20 RJ45 Gigabit Ethernet outputs. Each output can drive up to 650,000 pixels in 8-bit or 320,000 pixels in 10-bit colour depth. Each output can be individually configured as a main or backup port.

Main Outputs:20
Ethernet Speed (LED Screen):1 Gbit/s
Output Slots:2
Scaling Function:Yes
Maximum Loading Capacity:13 Mpx
Greyscale Processing:10 bit
Data Connector Out:RJ45
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
