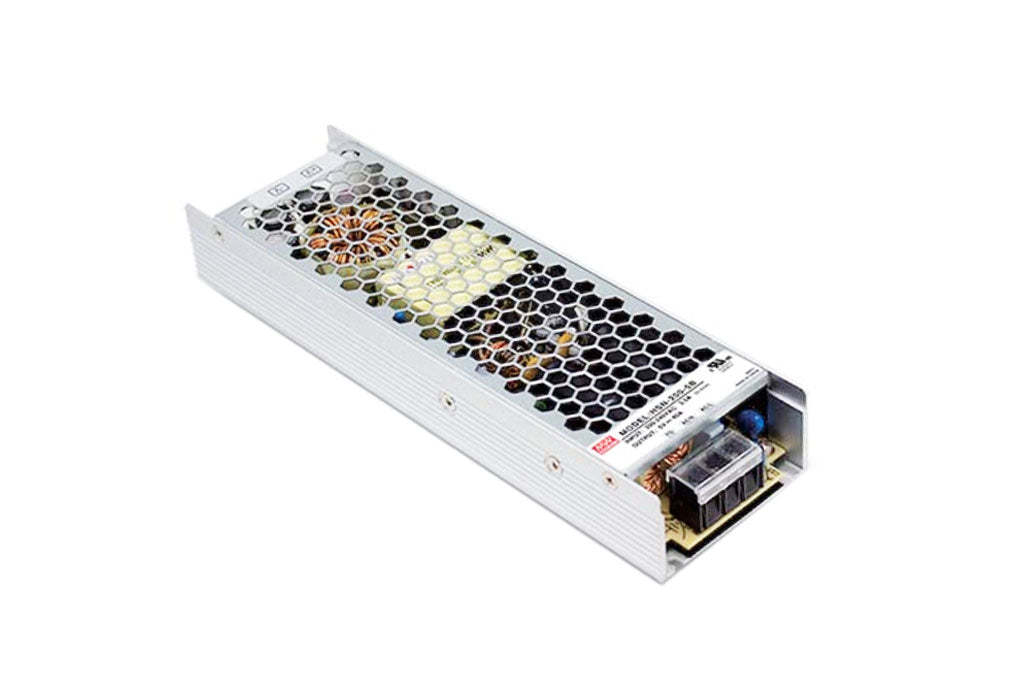

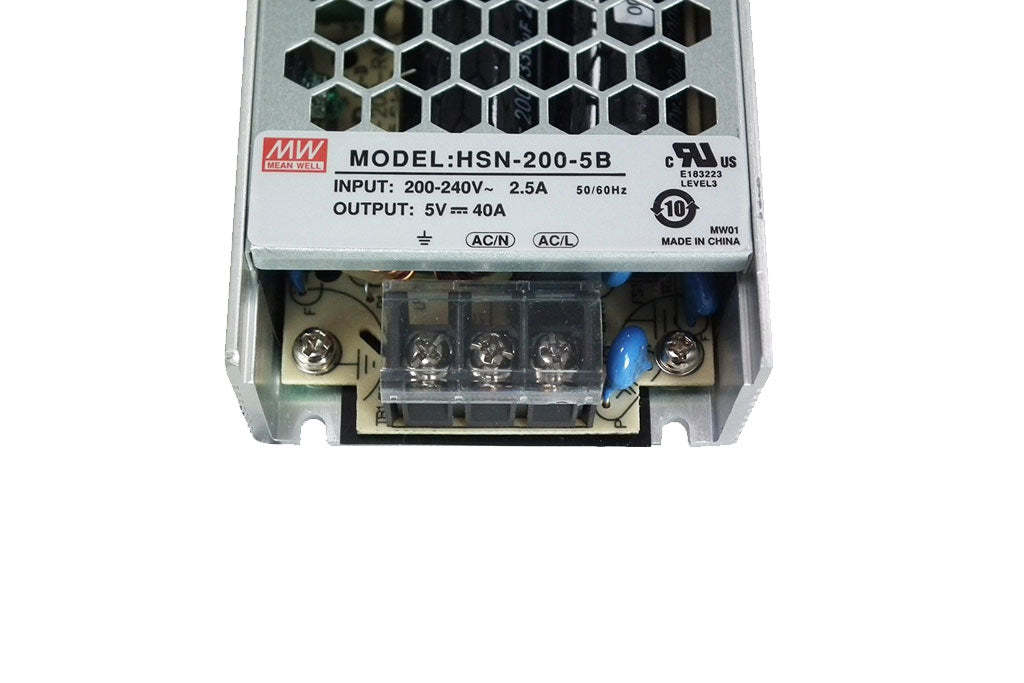

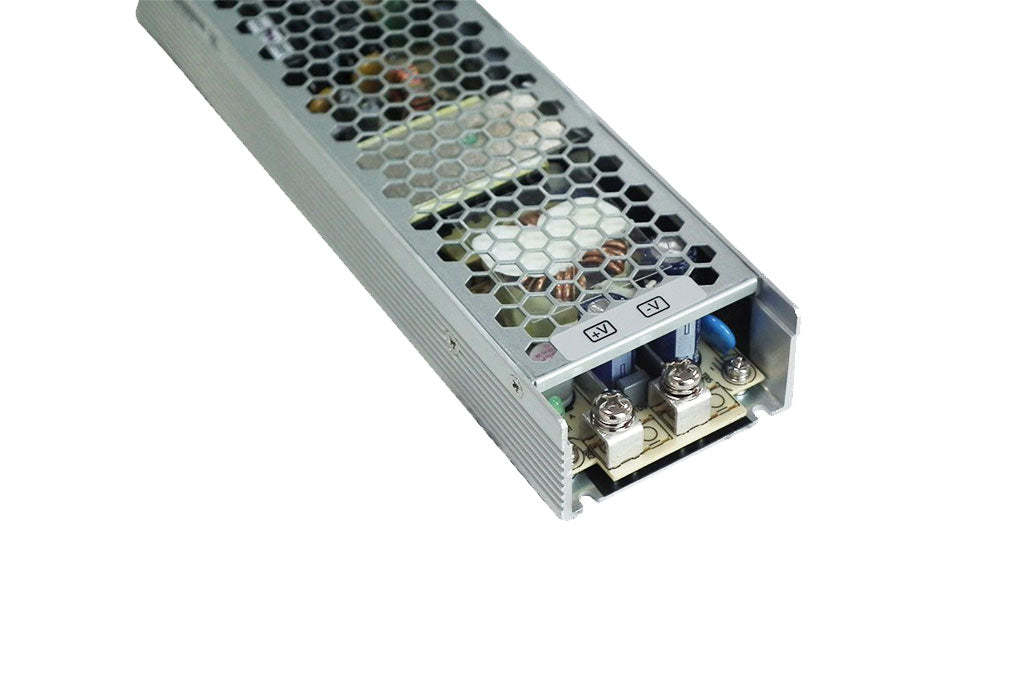

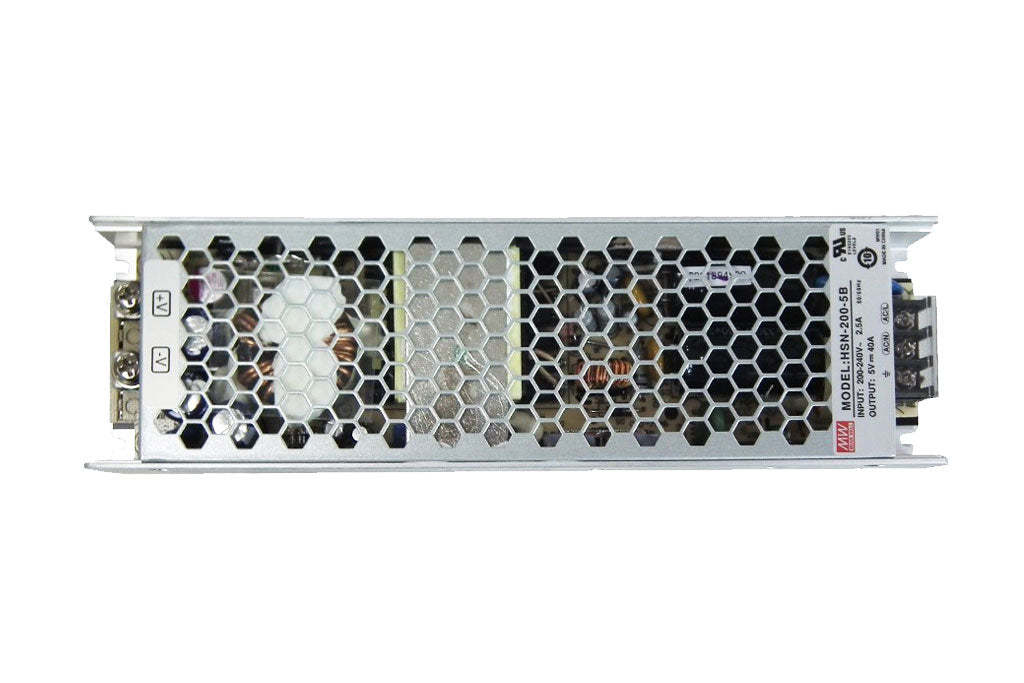

Meanwell HSN-200 Series HSN-200-5A HSN-200-5B LED Displays Power Supply

MEANWELL HSN-200 Power Supply is a ultra low profile slender sign panel power supply with up to 200W rated-power. The HSN-200 features two types with different input range: A-Type accepts 90~132VAC and B-Type accepts 180~264VAC. The output side supplies 4.2VDC and 5VDC, making HSN-200 work with both old and new generations of sign panel driver ICs, greatly raising the system design flexibility. This series incorporates non-PFC design, achieving a high efficiency up to 88% with a low cost, and the system performance is enhanced so both energy saving and electricity expense reduction can be fulfilled.

• 31mm ultra low profile, slim design
• Input range: A-Type, 90~132VAC; B-Type, 180~264VAC
• Rated power up to 200W (150W for 90~132VAC input models)
• High working efficiency up to 88%
• Fanless design, cooling by conduction via bottom plate (minimal size 450 x 450 x 3 mm)
• -25°C ~ +70°C working temperature
  (HSN-200 must be firmly mounted on an aluminum plate or the cabinet of sign panel module)
• Low leakage current <1mA
• Protections: short circuit / overload / over voltage / over temperature
• Dimension (LxWxH): 210x 62x 31 mm
