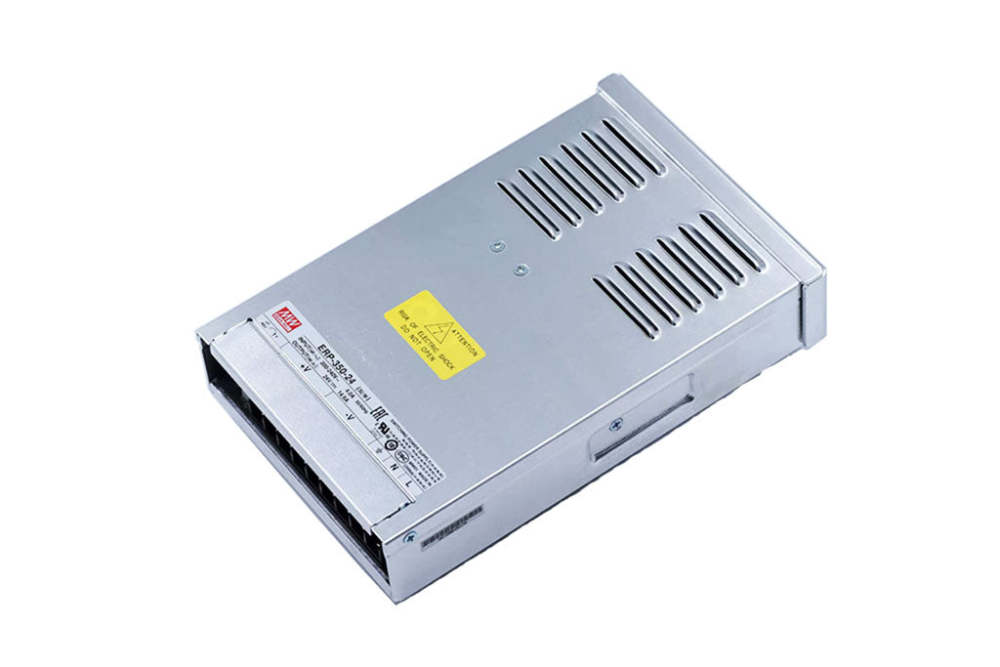

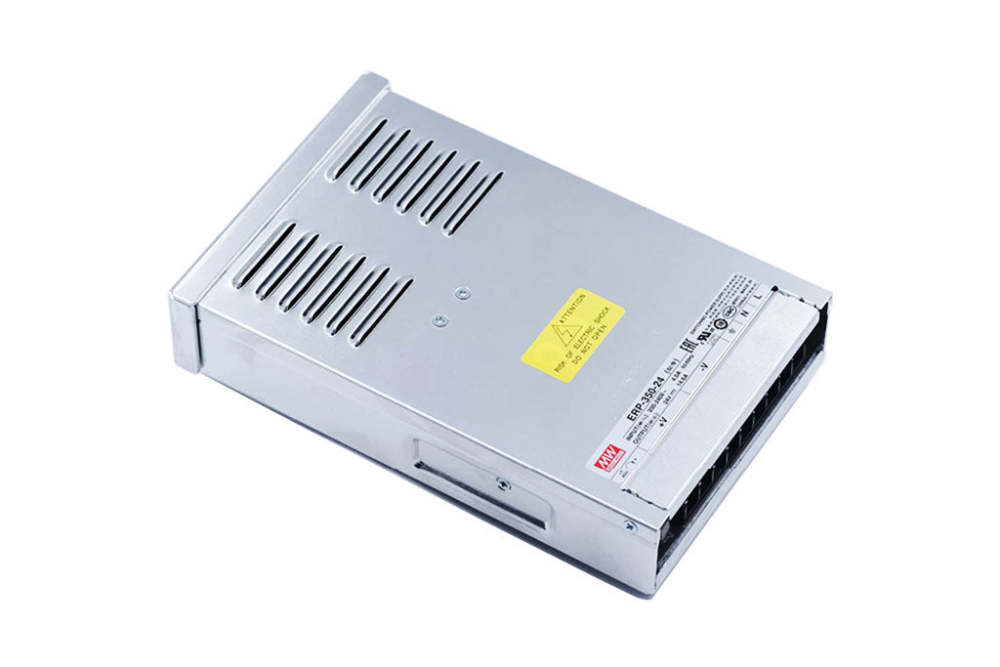

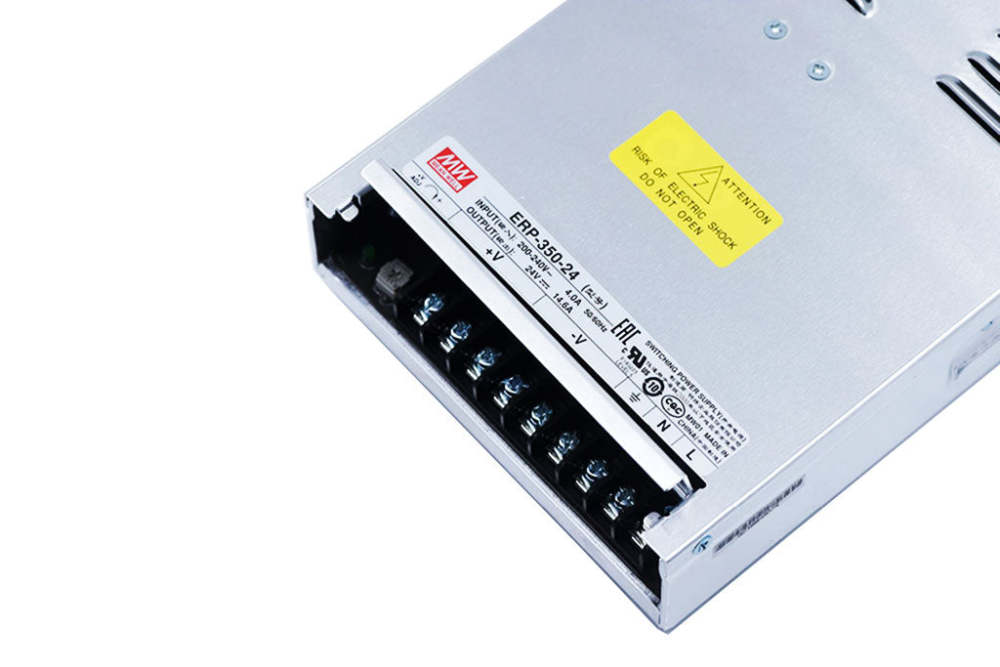

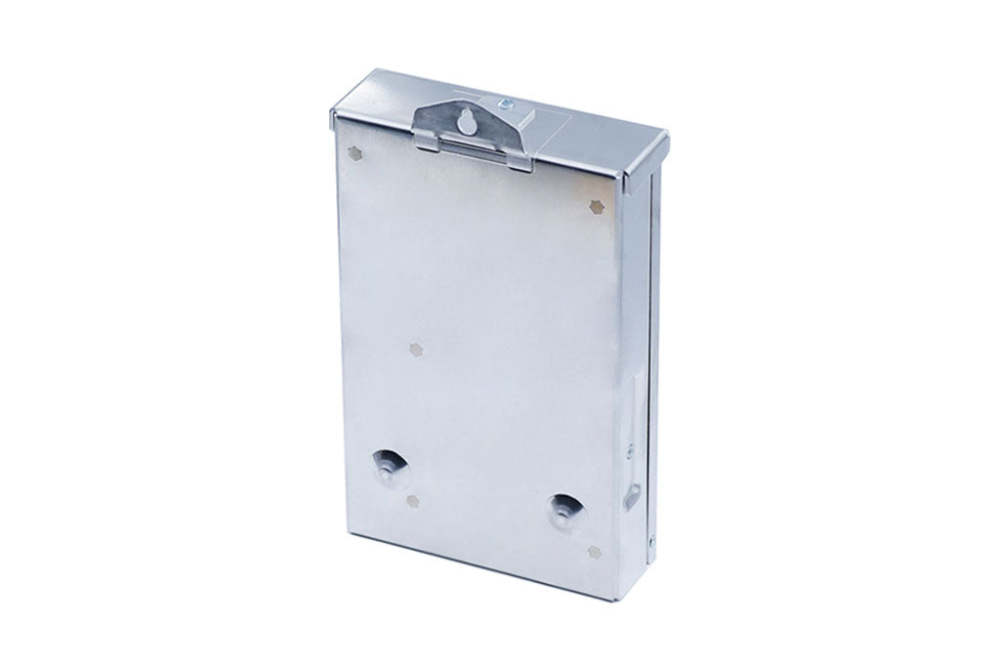

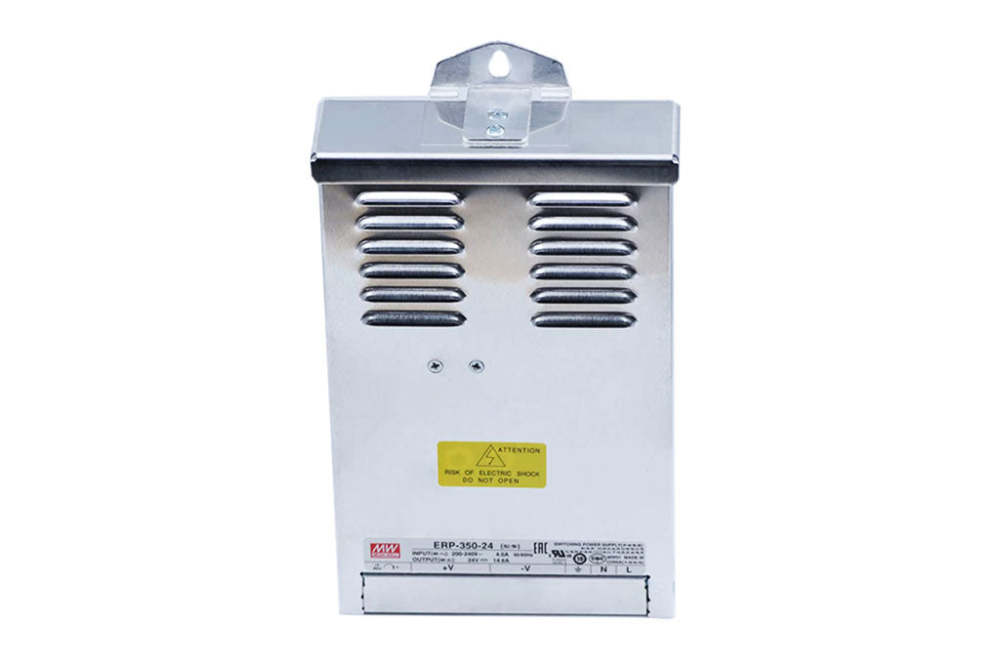

Meanwell ERP-350 Series ERP-350-12 ERP-350-24 LED Displays Power Supply

ERP-350 Series are a range of constant voltage output power supplies with 180-264VAC input range and 12Vdc,24Vdc, 36Vdc and 48Vdc output voltage options. The units possess 90% working efficiency and standard features such as ±10% trimming output voltage, protections for short circuit, over load, over voltage and over temperature. The ERP-350 Series can be installed in an outdoor environment, as long as situated beneath a suitable canopy cover; it has an aluminum enclosure, with heat dissipation holes designed to prevent rain splash. The series complies with CB/UL(CQC pending) certificates.

•  180-264VAC input
• ±10% Trimming output voltage
• Semi potted design
• Short circuit, over load, over voltage and over temperature protections
• Withstand 300VAC surge input for 5 seconds
• High efficiency up to 90%
• Cooling by free air convection
• LED indicator for power on
• Low cost, high reliability
• 100% full load burn-in test
• 3 years warranty
