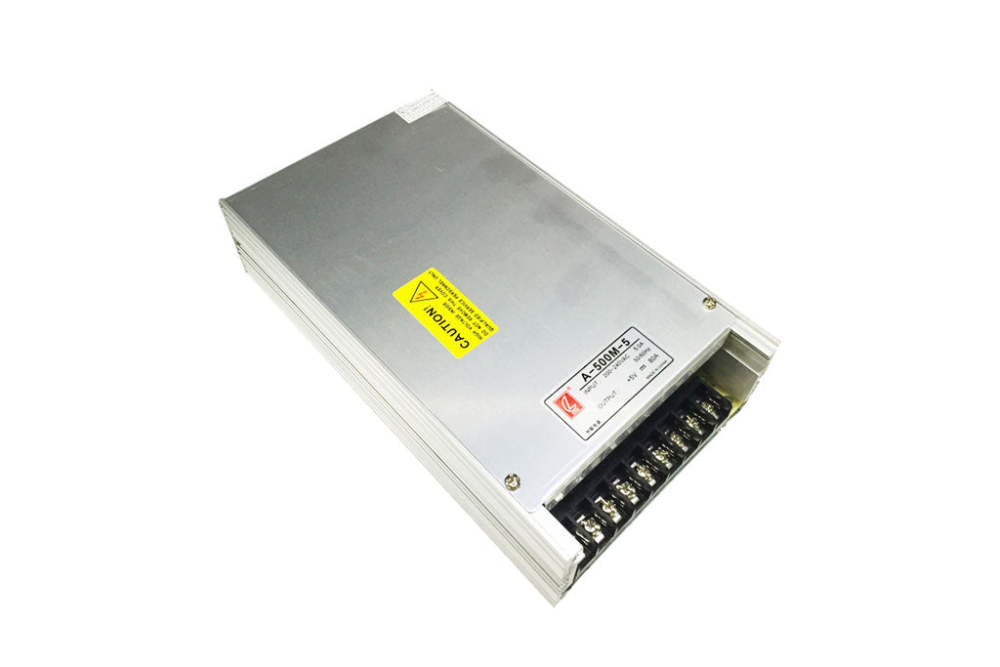

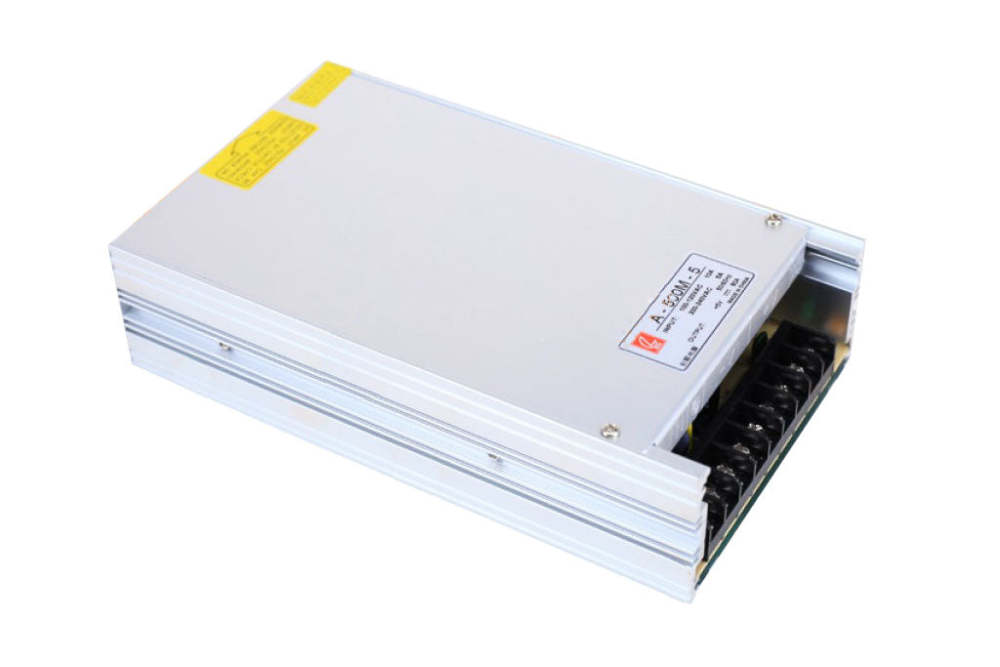

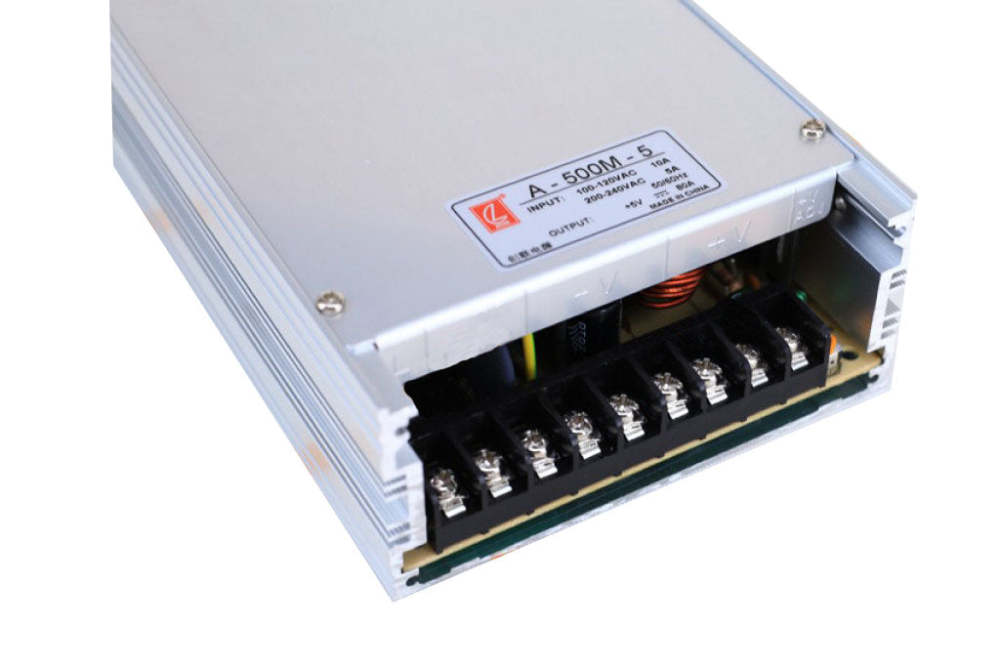

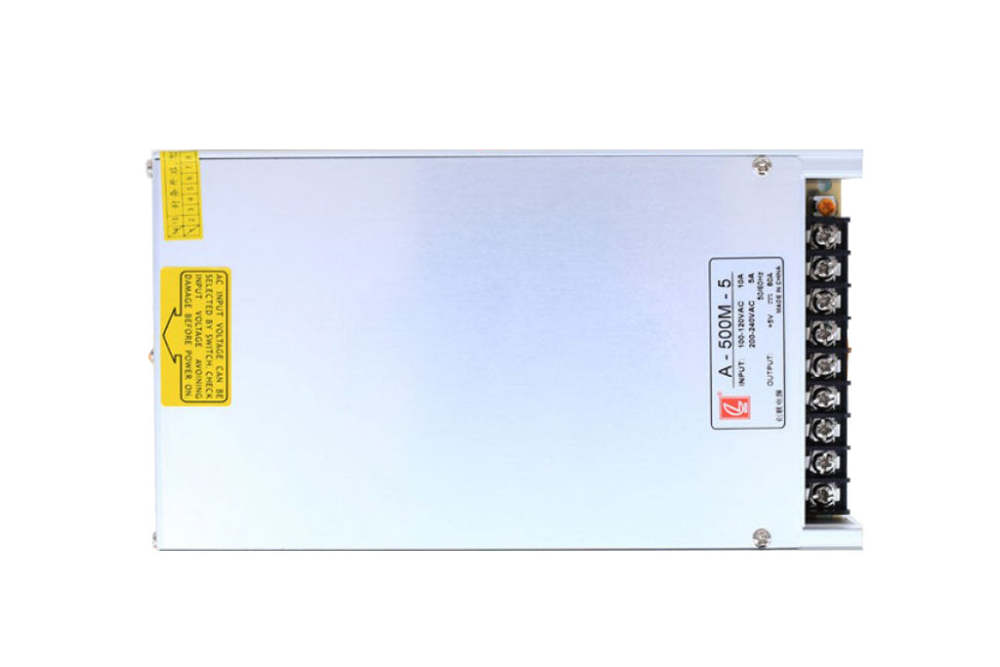

CZCL A-500M-5 5V80A Large Load LED Displays Power Supply
1.Large load capacity: 400w output power.
2.high reliability Quality, High standart quality elements parts are adopted, 100% full load high temperature aging tested.
3. Anti-dust, Anti-Moisture, Anti-Static
4. Protection: overload and short cirtuit protection
5. 2 Year Warranty
CZCL A-500M-5 5V80A 400W Large Load LED Displays Power Supply Parameters:
input voltage:
176-264Vac,47-63Hz
Protection:undervoltage,Overload,Short circuit
Output power:400W Max
Working temperature:-30~+60℃
Power factor:0.80@230Vac
Storage temperature:-40℃~+100℃，20~95%RH
Insulation voltage:I/P-O/P:3.0KVac
Safety standards:GB4943，UL60950-1，EN60950-1
I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min
Dissipate heat:cold
EMC Standards:: GB9254，EN55022
Inrush current: 80A/230VAC
Leakage current:0.30mA@230Vac
Size:205X114X50mm
