Sysolution D90 Series LED Receiving Card D90 D90-75 A4s LED Display Controller

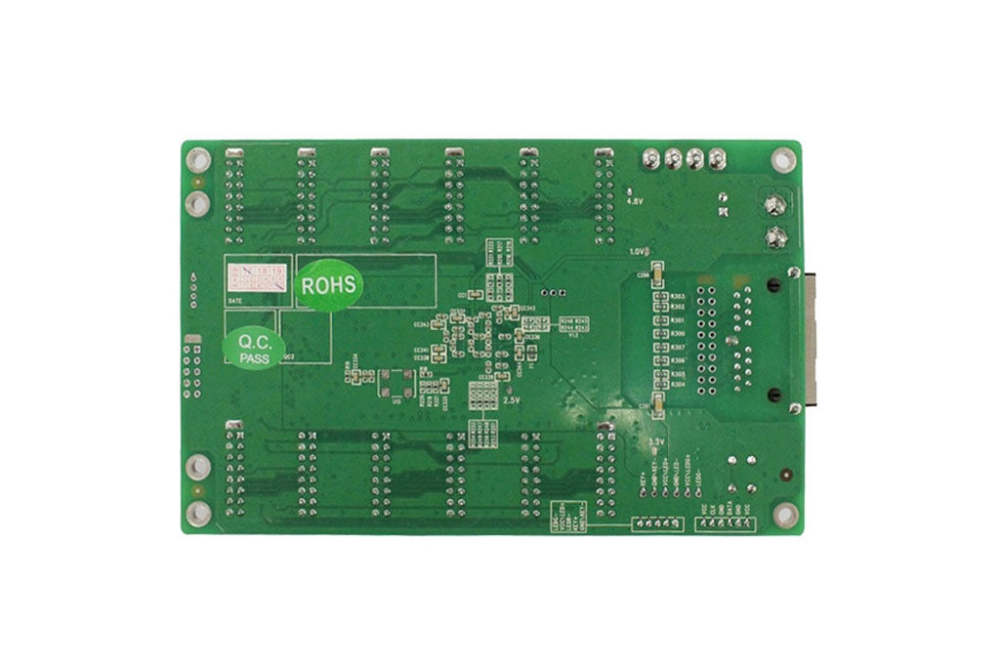

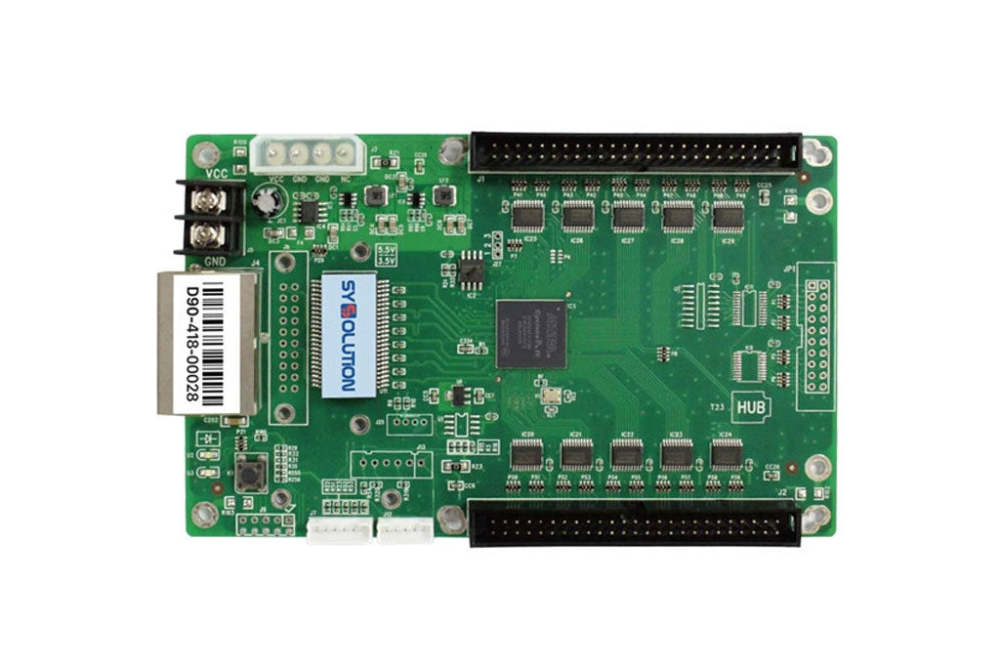

Sysolution D90 LED Screen Reveiving Card
Single block receiving card with pixel area：128×128
Working current:0.6A~1.0A
Working temperature：-10℃ – 65℃
Extreme operating temperature:-20℃ – 75℃
Working humidity(%):0℃-95℃

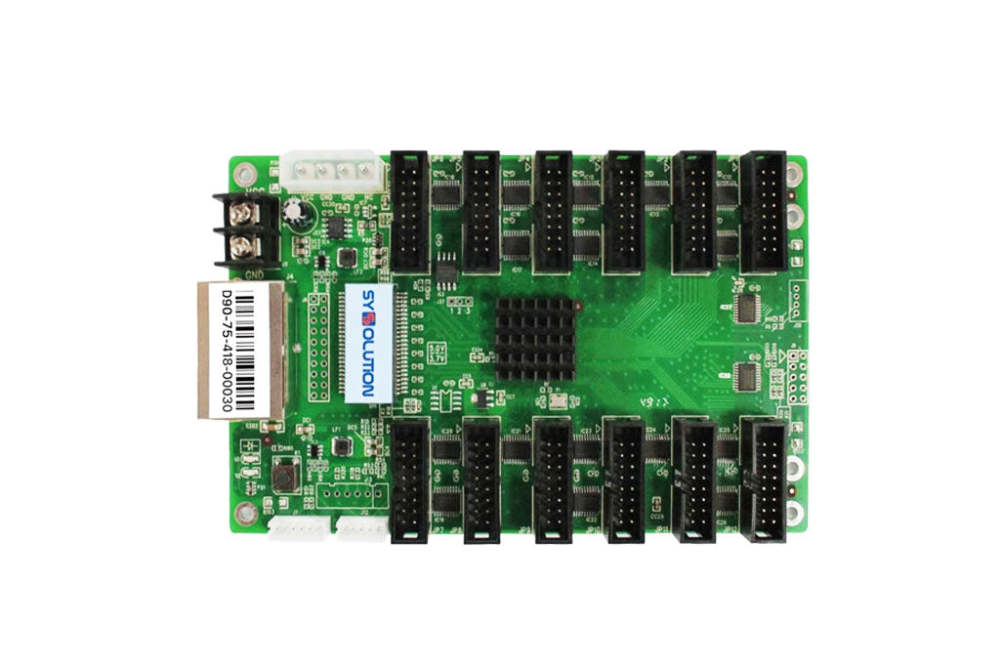

Sysolution D90-75 LED Video Receiving Card
12 hub75 ports
Single block receiving card with pixel area：128×128
Working current:0.6A~1.0A
Working temperature：-10℃ – 65℃
Extreme operating temperature:-20℃ – 75℃
Working humidity(%):0℃-95℃

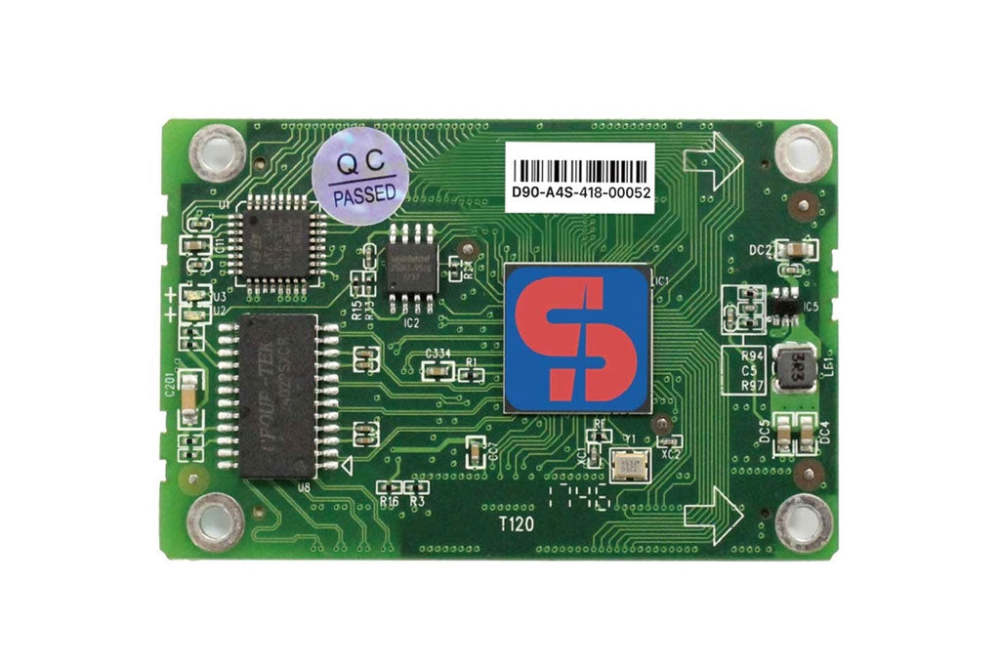

Sysolution D90-A4S LED Screen Receiving Card
1. 24 sets of RGB output;
2. Support 8/10BIT modes of input image gray level;
3. Output Maximum 20BIT gray level;
4. Support 96K pixels of single receiving card;
5. Wide voltage input range, input voltage range: +3.5V—+5.5V;
6. High refresh rate, high brightness and high gray level for general driver ICs;
7. Support read-back parameters from receiving card;
8. Dual backup for the network cable and support data detecting of ribbon cables;
9. Support monitoring for temperature, humidity, power voltage and fans of led screen cabinets;
10. Support to debug point by point for the brightness and chroma;
11. Support variety of driver ICs including PWM IC, point by point detecting IC and general IC;
12. Support monitoring for external environment;
13. Provide power pin for each port, support charge power from led panel.

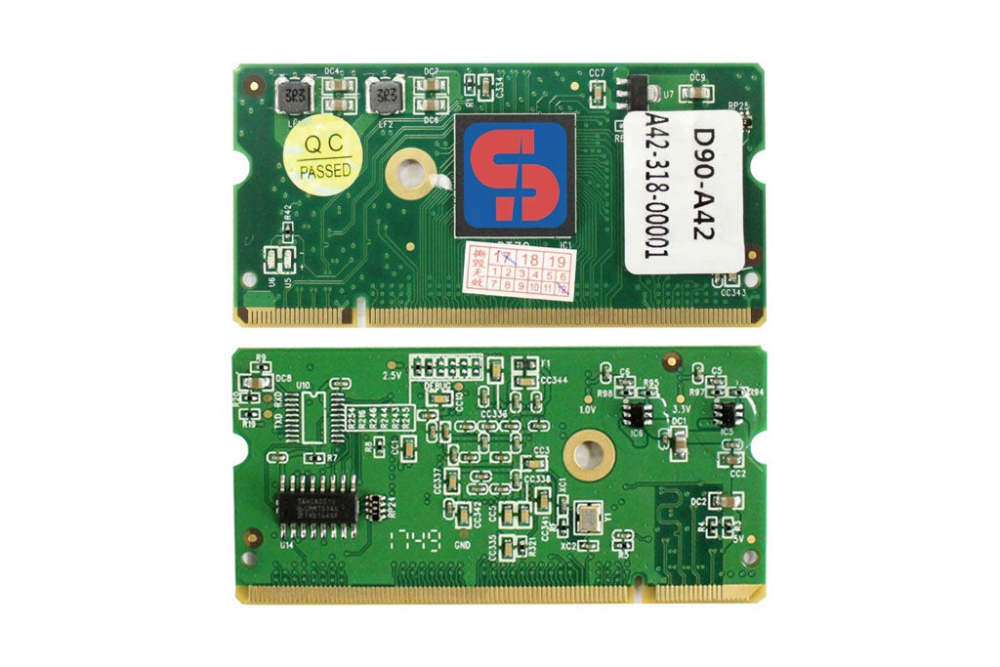

Sysolution D90-A42 LED Screen Receiving Card
With tiny size
Single block receiving card with pixel area:128×128
Working current:0.6A~1.0A
Working temperature:-10℃ - 65℃
Extreme operating temperature:-20℃ - 75℃
Working humidity(%):0℃-95℃

Further Information:
D90/D90-75/D90-A4S
D90 LED Receiving Card Specification
D90-75 LED Receiving Card Specification
D90-A4S LED Receiving Card Specification
