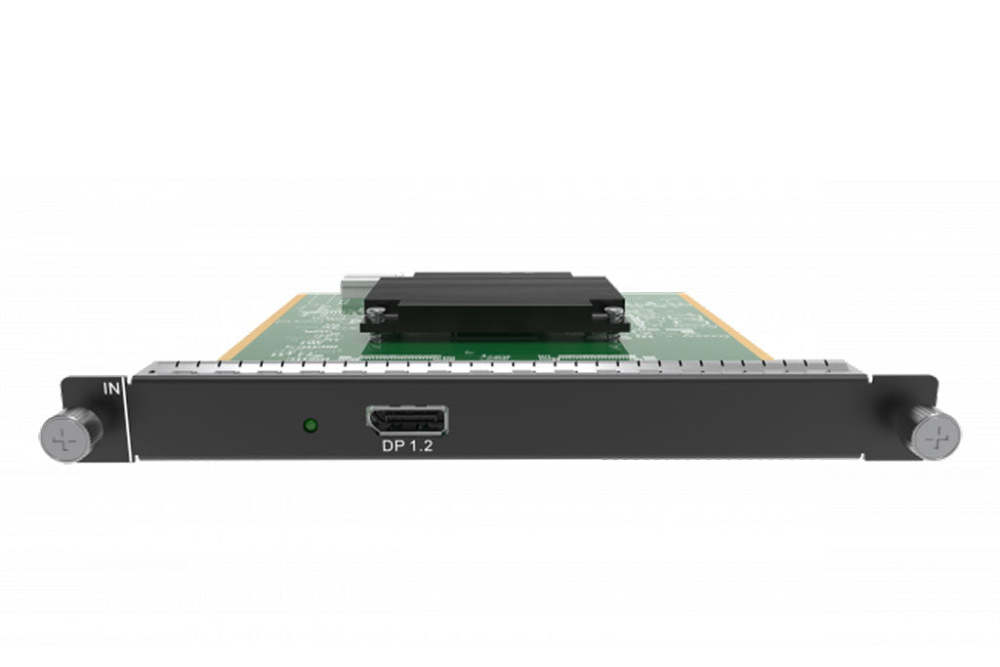

NovaStar H Series 1x DP1.2 Input card

Novastar H Series 1x DP1.2 Input Card

The Novastar H Series 1x DP1.2 input card has a single DP 1.2 connector that supports a maximum resolution of 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz. Custom resolution has a maximum width of 8192 pixels (8192 x 1146 @ 60 Hz) and a maximum height of 4095 pixels (2188 x 4095 @ 60 Hz). The card is HDCP 2.2 compliant and backwards compatible with DP 1.1. The status LED indicates if an input signal is present.

• Max. resolution 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz  √
• HDCP 2.2 compliant   √
• Backward compatible with DP 1.2   √

DP 1.2:1
Input Slots:1
Maximum Input Resolution:4096 x 2160, 8192 x 1080
Weight:0.55 kg (1.213 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
